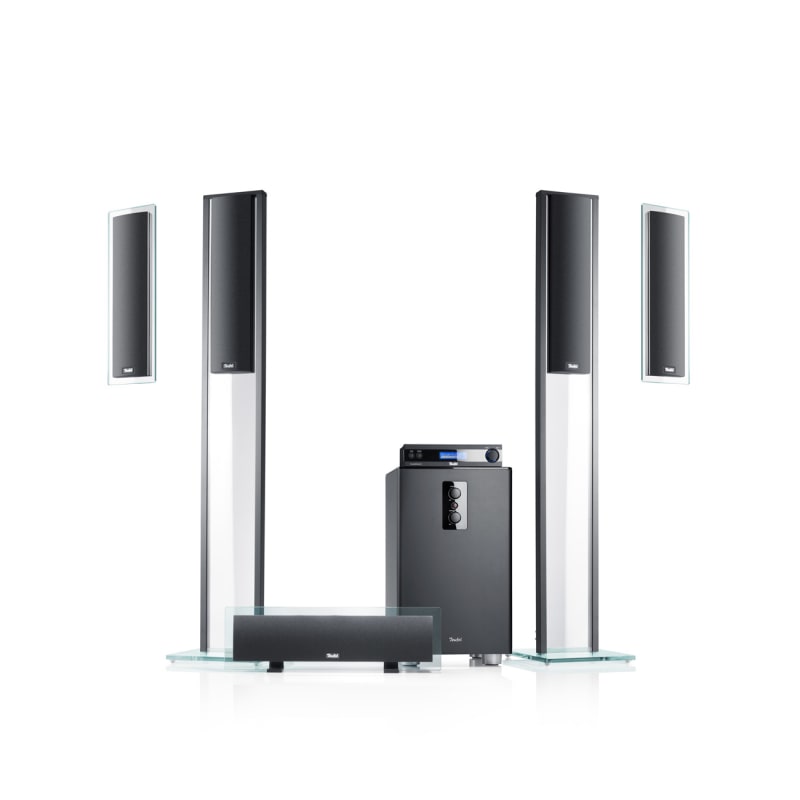

ULTIMA 40 Surround + DENON X2800H DAB "5.1-Set"
Check out the next generation now.
Highlights
Key advantages at a glance
- No additional A/V receiver required
- Plug-and-play system with easy set up
- Complete 5.1-channel home theater system
- 8 connection options for maximum versatility
- Set M: 2 long column speakers, 2 short column speakers, 1 centre speaker and 1 subwoofer, 1 AV unit
- Classic design combined with contemporary sound
Features
All technologies at a glance
Specifications
30m Speaker Cable 1.0mm² - C1030S
-
Description Item Cross-section 1 mm² Cable length 30 m
Active-Subwoofer US 2108/6 SW
The active Subwoofer US 2108/6 SW comes in 24 liter housing and weighs 14 kg is an indispensable part of the set for optimal cinema surround sound in your home.
The compact size means the subwoofer takes up little space. Despite its slim shape the subwoofer still incorporates the powerful and large 200 mm woofer, allowing the US 2108/6 SW to perform to a much higher standard than others in the same price range. Thanks to an amplifier with 100 watts of power, the US 2108/6 SW bass that goes down to an incredible 45-Hz. The internal limiter protects the subwoofer from overload and distortion.
At the back there is a phase switch and sockets for direct connection of the surround speakers. And on the back you can easily connect the Decoder or the Control Station 5 mark 2.
Optically, the US 2108/6 SW is timeless and perfect for any living room. With its sleek and discreet shapes with modern gloss and rounded corners, this subwoofer fits into any living room. The bass reflex port at the bottom and the special notch on the back of the housing ensure seamless positioning against most walls. Four resonators ensure stable positioning and decoupling from the floor.
The US 2108/6 SW is only sold as part of a Teufel set and cannot be ordered separately.
-
Description Item Width 28 cm Height 50 cm Depth 28 cm Weight 13.95 kg -
Description Item Power supply voltage 230 V Automatic on/off Yes Maximum power consumption 450 W Mains cable - IEC connector (non-heating device) Yes Safety class 2 Fuse Yes Storage for settings when disconnected Yes Standby-Function Yes Standby-Power consumption 0.5 W Bass boost/EQ Yes Input gain adjustment Yes Level control Yes Power output capacity sinus (RMS) Bass 100 W Power output capacity impulse (peak) Satellite 25 W Power output capacity impulse (peak) Bass 125 W Amplifier configuration 5.1 Amplifier technology Class AB + Class D Amplifier channels 6 Power output capacity sinus (RMS) Satellite 20 W -
Description Item Lowest frequency (-3 dB) 40 Hz Maximum cable diameter 4 mm Equalization port (position) Bottom Equalization port 1 Down-firing Yes Cabinet material MDF Cabinet surface High gloss (front), foil (corpus) Magnetic shielding Yes Net internal volume 24 L Integrated stand Yes Woofer (number per enclosure) 1 Woofer (diameter) 200 mm Woofer (material) cellulose Continuous power handling (IEC - Long Term) 100 W Sensitivity (2.83 V / 1 m) 87 dB Frequency range 40 - 200 Hz Peak power capacity (IEC - Short Term) 250 W Maximum sound pressure level 112 dB/1m Impedance 4 Ohm Acoustic principle 1-way-system Enclosure type Bass reflex -
Description Item Terminal clamps Push terminals High level speaker outputs 5 RCA input 5.1 1
Center Speaker CL 250 C
The center speaker in its landscape format is the equal to the column speakers, having identical kit inside. The two midrange drivers and tweeter are set back in their glass housing as well. This is how we keep the design of this system fresh and looking bright while providing fantastic speech intelligibility.
The CL 250 C is designed for two separate setup possibilities: either you set it on the shelf or you mount it directly to the wall by the integrated wall mount.
-
Description Item Width 50 cm Height 15 cm Depth 7.2 cm Weight 2 kg -
Description Item Terminal clamps Screw terminals Minimum amplifier output power recommended 20 W -
Description Item Suitable for AV receiver Yes Maximum cable diameter 2.5 mm Removable front cover Yes Cabinet material Plastic + glass Cabinet surface Lacquer, matte + glass Magnetic shielding Yes Keyhole plate mounted Yes Wall mounting brackets Yes Tweeter (number per enclosure) 1 Tweeter (diameter) 19 mm Tweeter (material) Fabric Bass/Midrange driver (number per enclosure) 1 Bass/Midrange driver (diameter) 70 mm Bass/Midrange driver (material) Cellulose Continuous power handling (IEC - Long Term) 60 W Sensitivity (2.83 V / 1 m) 85 dB Frequency range 120 - 20000 Hz Peak power capacity (IEC - Short Term) 100 W Maximum sound pressure level 97 dB/1m Impedance 4 - 8 Ohm Crossover frequency to Woofer (recommended) 150 Hz Acoustic principle 2-way-system Enclosure type Closed Crossover frequency internal switch 2400 Hz
Satellite Speaker CL 250 FCR (pc.)
The CL 250 FCR rear speaker is optimised via klippel and its 80 mm deep-midrange driver and the 19 mm fabric tweeter with its Neodym magnet. In construction and development, this rear speaker is identical to the centre speaker. You can mount this speaker either on stands or place on the wall, thanks to the integrated wall mount.
-
Description Item Width 15 cm Height 50 cm Depth 7.2 cm Weight 2 kg -
Description Item Terminal clamps Screw terminals Minimum amplifier output power recommended 20 W -
Description Item Suitable for AV receiver Yes Maximum cable diameter 2.5 mm Removable front cover Yes Cabinet material Plastic + glass Cabinet surface Lacquer, matte + glass Magnetic shielding Yes Net internal volume 2.7 L Keyhole plate mounted Yes Wall mounting brackets Yes Tweeter (number per enclosure) 1 Tweeter (diameter) 19 mm Tweeter (material) Fabric Bass/Midrange driver (number per enclosure) 2 Bass/Midrange driver (diameter) 70 mm Bass/Midrange driver (material) Cellulose Continuous power handling (IEC - Long Term) 60 W Sensitivity (2.83 V / 1 m) 85 dB Frequency range 120 - 20000 Hz Peak power capacity (IEC - Short Term) 100 W Maximum sound pressure level 97 dB/1m Impedance 4 - 8 Ohm Crossover frequency to Woofer (recommended) 150 Hz Acoustic principle 2-way-system Enclosure type Closed Crossover frequency internal switch 2400 Hz
DecoderStation 5 Mk2
This ultra compact control device serves as a preamp for a 5.1-powered subwoofer. The Decoder Station Mk2 offers four digital (optical and 2x 2 x coaxial) inputs plus four stereo analog inputs (1 x 5.1, 1 x stereo). These are located on the back of the device and are suitable for the connection of many different devices. The integrated decoder for DTS, Dolby Digital, Dolby Pro Logic ensures perfect surround sound for many playback devices.
With the extra Lip Sync option you ensure that video and audio are played simultaneously. The Decoder Station is compatible with many different types of speakers in the frequency range of 80-250 Hz. The included remote control gives you access to all the devices that you have connected the decoder Station Mk2.
-
Description Item Width 23.5 cm Height 5.4 cm Depth 15 cm Weight 1.01 kg -
Description Item Cinch input stereo 3 Digital inputs coaxial 2 Digital inputs optical 1 RCA output 5.1 1 RCA input 5.1 1 -
Description Item Dolby Digital Yes Dolby Pro Logic II Yes DTS Digital Surround Yes DTS NEO:6 Yes Dolby Pro Logic Yes -
Description Item Integrated DSP Yes Power supply voltage 100 - 230 V Automatic on/off Yes Storage for settings when disconnected Yes Standby-Function Yes Standby-Power consumption 0.5 W -
Description Item Remote control Infrared
Accessories
All required accessories are included in the delivery.
Recommended accessories
Included components
- 1 × 30m Speaker Cable 1.0mm² - C1030S – Black
- 3 × RCA-Cable 3.0 m C7030A – Black
- 1 × Active-Subwoofer US 2108/6 SW – Black
-
1 × Pair Satellite Speaker CL 250 FR
–
black - mat
- 2 × Column Speaker CL 250 FR (pc.) – Black
- 1 × Center Speaker CL 250 C – black - mat
-
1 × Pair Satellite Speaker CL 250 FCR
–
black - mat
- 2 × Satellite Speaker CL 250 FCR (pc.) – Black
-
1 × DecoderStation 5 Mk2
–
Black
- 1 × DecoderStation 5 Mk2 Steuergerät – Black
- 1 × Remote Control Decoderstation 5 RC Mk2
- 1 × Power supply for Decoderstation 5 Mk2
